Milling Machines - Duplex, Triplex
PLC-controlled duplex and triplex milling machines with rigid cast iron base, ISO 50 taper milling heads, and hydraulic CD-45 slides for simultaneous face milling.
Overview
MIS Duplex and Triplex Milling Machines are designed for simultaneous milling of two or three surfaces in a single operation. Built on a rigid cast iron machine base, these machines feature hydraulically operated CD-45 slides with telescopic guideways for fixture movement. Equipped with ISO 50 taper milling heads and large diameter milling cutters (315mm & 500mm with inserts), they deliver excellent surface finish and productivity. PLC control automation ensures consistent operation, while the effective chip disposal system with screw conveyor maintains clean working conditions.
Key Features
- Rigid Cast Iron Machine Base
- Hydraulically Operated CD-45 slide for Fixture movement
- Telescopic guide ways
- ISO 50 Taper Milling Heads
- Milling Cutters diameter 315mm & 500mm with inserts
- Effective chip Disposal System through Screw conveyor
- PLC Control Automation
- Duplex: Two opposed milling heads
- Triplex: Three milling heads configuration
- Simultaneous multi-surface milling
Specifications
| Machine Base | Rigid Cast Iron |
| Slide Model | CD-45, Hydraulically operated |
| Guide Ways | Telescopic |
| Spindle Taper | ISO 50 |
| Cutter Diameter | 315mm & 500mm |
| Chip Disposal | Screw conveyor system |
| Control | PLC Automation |
| Configuration | Duplex / Triplex |
Applications
Gallery

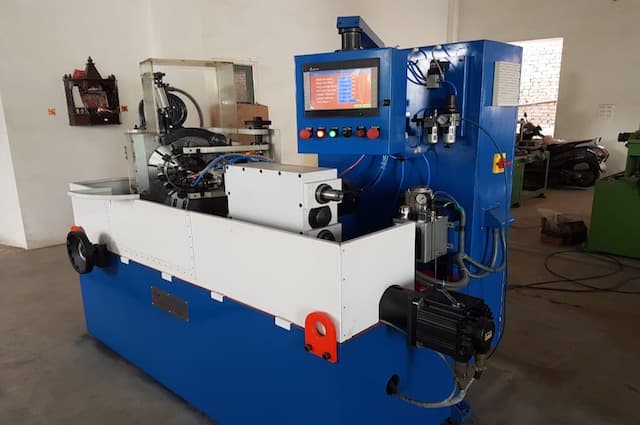

Duplex Face Milling Machine
Click on any image to view in full size
