Horizontal Multi Spindle Boring Machine
PLC-operated horizontal multi-spindle boring machines with power-operated CD-35 slides for simultaneous LHS and RHS crankcase bore machining.
Overview
MIS Horizontal Multi Spindle Boring Machines are designed for simultaneous boring of multiple holes in horizontal orientation with PLC-operated automation. These machines feature power-operated CD-35 slides and multiple fine boring heads configured for specific applications like crankcase machining. Our horizontal boring SPMs accommodate three-spindle fine boring heads for LHS crankcase bores and two-spindle fine boring heads for RHS crankcase bores, all in a single setup. With specially designed fine boring holders, these machines achieve close and accurate CTC (center-to-center) and bore sizes, dramatically reducing cycle time while maintaining exceptional accuracy.
Key Features
- Power operated CD-35 Slide
- Three Spindle fine Boring Heads for machining of LHS Crankcase bore
- Two Spindle fine Boring Heads for machining of RHS Crankcase bore
- PLC Operated Automation
- Close and Accurate CTC & Bore sizes
- Specially Designed Fine Boring Holders
- Simultaneous multi-bore machining
- Automatic bore size compensation
- Rigid horizontal bed construction
- Precision linear guideways
Specifications
| Slide Model | CD-35 power operated |
| LHS Boring Head | 3-spindle fine boring |
| RHS Boring Head | 2-spindle fine boring |
| Automation | PLC operated |
| Boring Accuracy | Close CTC & bore sizes |
| Boring Range | 40 to 200 mm |
| Accuracy | ±0.005 mm |
| Concentricity | Within 0.01 mm |
Applications
Gallery

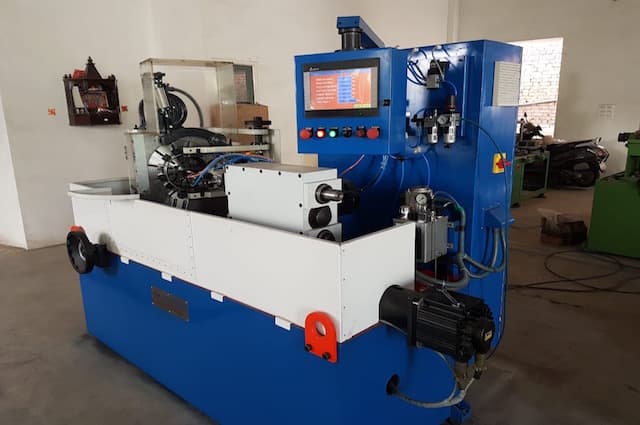

Horizontal Boring SPM for Crankcase Machining
Click on any image to view in full size
Interested in Horizontal Multi Spindle Boring Machine?
Contact our team to discuss your manufacturing requirements and get a customized SPM solution.
Get a Quote
