Multi Gauge Systems

MIS designs and manufactures advanced Multi-Gauge Systems for simultaneous measurement of multiple parameters, enabling high-speed quality inspection in production environments.

Overview

Maharajashree Industrial Solutions specializes in designing and manufacturing state-of-the-art Multi-Gauge Systems that revolutionize quality inspection processes. Our systems enable simultaneous measurement of multiple critical dimensions in a single setup, dramatically reducing inspection cycle time while ensuring exceptional accuracy. Built with precision engineering and integrated with advanced electronics, our Multi-Gauge Systems feature automatic sorting capabilities that separate OK and NOT-OK parts in real-time. Each system is custom-designed to match specific component geometries and inspection requirements, making them ideal for high-volume automotive, aerospace, and precision engineering applications. With integrated SPC software and data logging capabilities, manufacturers can maintain complete traceability and process control.

Key Features

Custom-designed for specific component geometry
Simultaneous multi-parameter measurement
Automatic OK/NOT-OK sorting
High-speed measurement cycle
Integrated SPC data logging

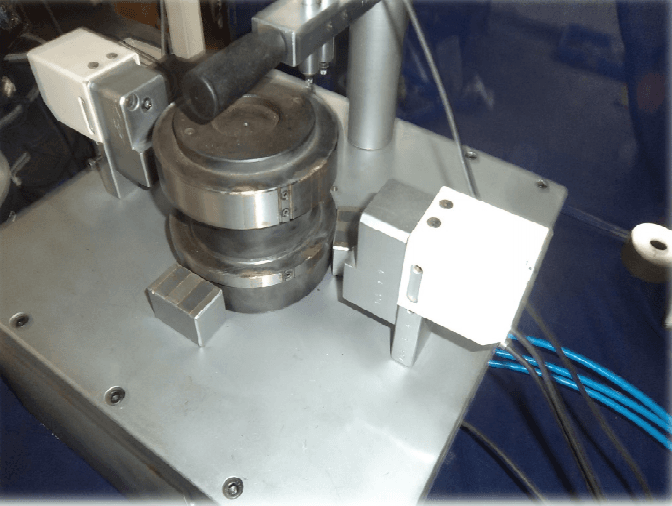

Pneumatic and electronic probes
Touch-screen HMI interface
Real-time measurement display

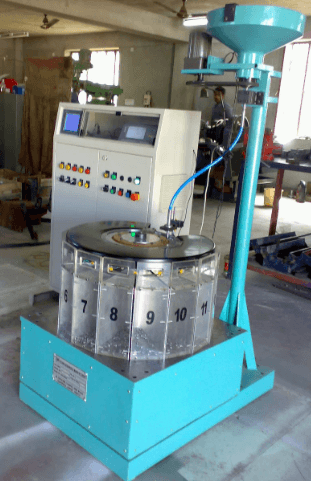

Roller-based component handling
Robust industrial construction

Specifications

Measurement Points	Up to 64 channels
Accuracy	±0.001mm (1 micron)
Cycle Time	< 3 seconds per part
Sorting	Automatic OK/NOT-OK
Data Output	USB, Ethernet, RS-232
Display	Industrial Touch Screen
Operating Temperature	15-35°C
Power Supply	220V AC, 50Hz
