Gauging Fixtures

MIS designs and manufactures precision gauging fixtures for accurate, repeatable dimensional measurement of manufactured components including bore gauges, thread gauges, snap gauges, and custom inspection fixtures.

Overview

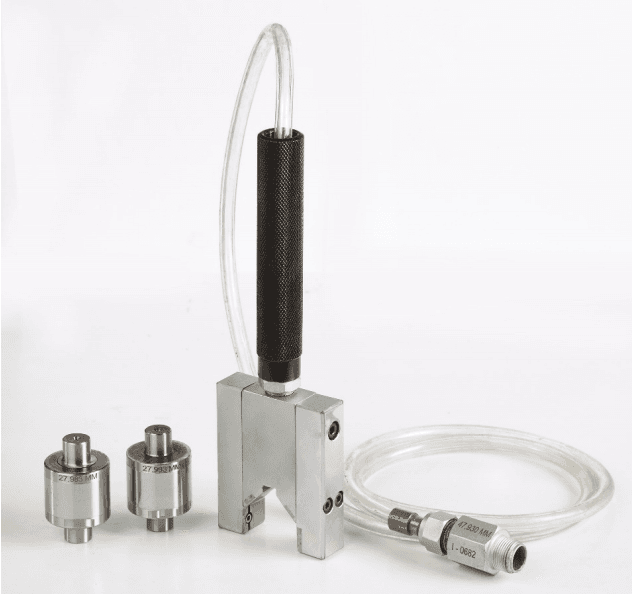

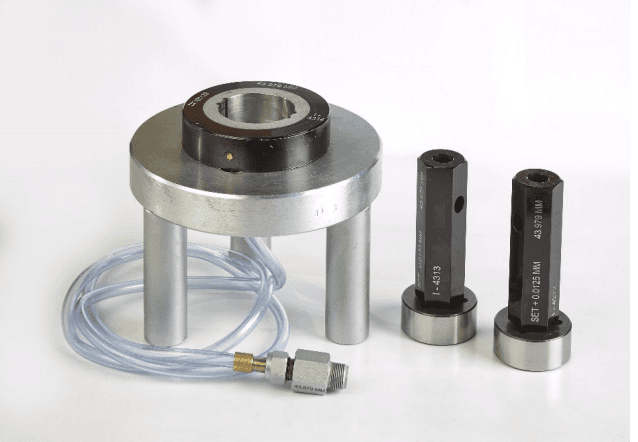

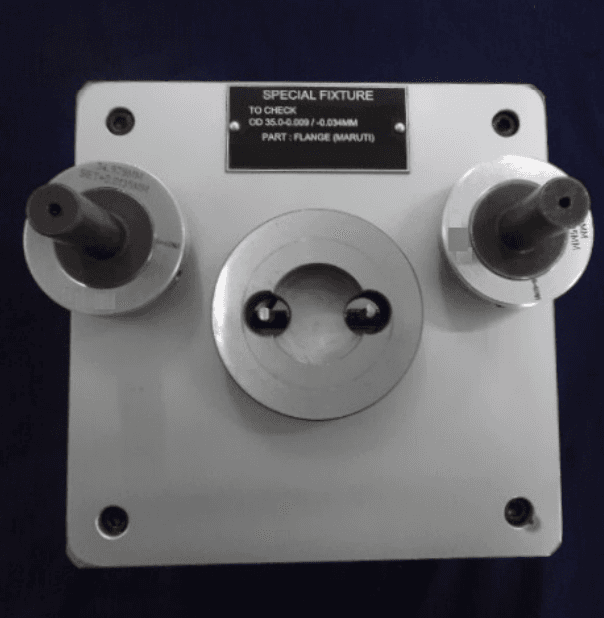

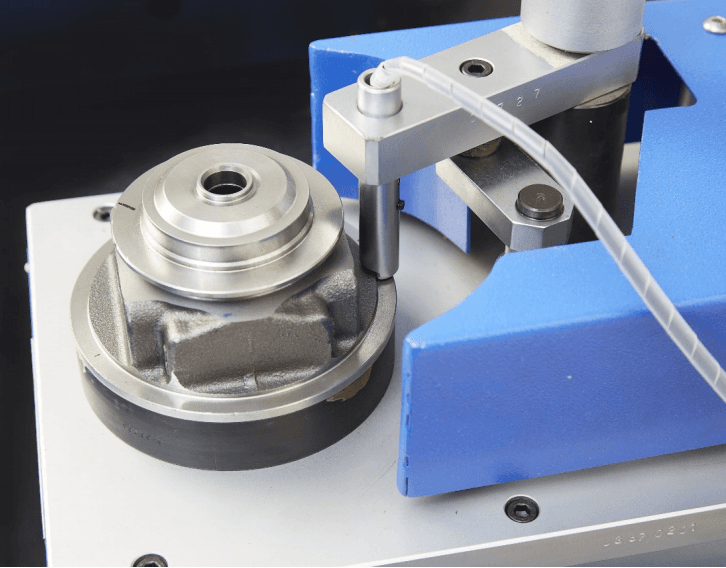

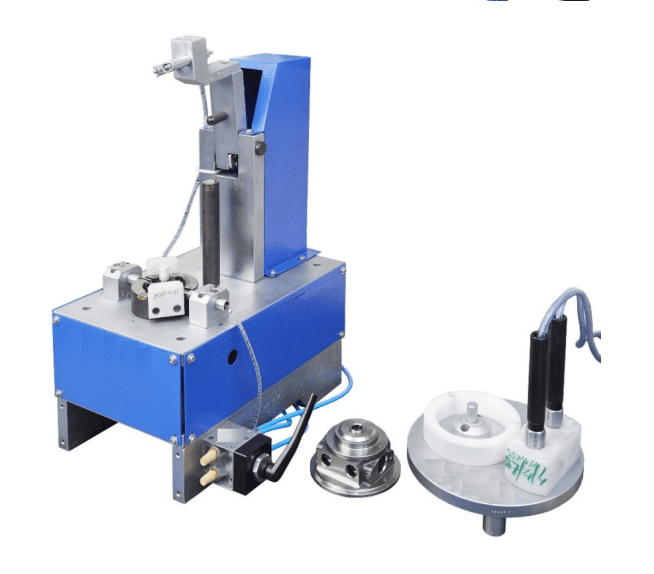

Maharajashree Industrial Solutions specializes in designing and manufacturing high-precision gauging fixtures tailored to your specific component geometry and inspection requirements. Our fixtures are built using hardened tool steel and carbide inserts to ensure exceptional durability and long service life in demanding production environments. Each fixture is custom-engineered with advanced CAD/CAM design and precision CNC machining to achieve sub-micron accuracy. We offer a comprehensive range of gauging solutions including bore gauges for internal diameter measurement, thread gauges (Go/No-Go) for thread inspection, snap gauges for external dimensions, height gauges, concentricity fixtures, and profile verification gauges. All fixtures are supplied with NABL traceable calibration certificates and can be integrated with digital readouts, SPC systems, and automated handling equipment for seamless production line integration.

Key Features

Custom CAD/CAM design for specific components
Precision CNC machined construction
Hardened tool steel and carbide inserts
Sub-micron measurement accuracy
Wear-resistant contact surfaces
Digital indicator integration ready
Quick-change probe systems
Ergonomic operator-friendly design
NABL traceable calibration
SPC software compatible

Specifications

Material	Hardened tool steel / Carbide
Surface Finish	Ra 0.2 μm
Hardness	58-62 HRC
Repeatability	±0.0005mm (0.5 micron)
Accuracy	±0.001mm (1 micron)
Calibration	NABL traceable
Indicator	Digital / Dial compatible
Warranty	2 years
